Key Rate Sensitivities

Compute key rate durations, DV01s, and convexities via automatic differentiation using ZeroRateCurve from FinanceModels.jl.

This approach uses ForwardDiff to differentiate through the curve construction, giving exact (machine-precision) sensitivities in a single pass. See the autodiff ALM chapter for background.

Basic Usage

Construct a ZeroRateCurve with continuously-compounded zero rates and tenor times, then pass it to duration, convexity, or sensitivities:

using ActuaryUtilities, FinanceModels

rates = [0.03, 0.03, 0.03, 0.03, 0.03]
tenors = [1.0, 2.0, 3.0, 4.0, 5.0]
zrc = ZeroRateCurve(rates, tenors)

cfs = [5.0, 5.0, 5.0, 5.0, 105.0]

# Scalar modified duration (default)
dur = duration(zrc, cfs, tenors)

# Scalar DV01
dv01 = duration(DV01(), zrc, cfs, tenors)

# Scalar convexity
conv = convexity(zrc, cfs, tenors)

To get the full key-rate decomposition (vectors/matrices), use KeyRates():

# Key rate durations (modified): vector of -∂V/∂rᵢ / V
krds = duration(KeyRates(), zrc, cfs, tenors)

# Key rate DV01s: vector of -∂V/∂rᵢ / 10000
dv01s = duration(DV01(), KeyRates(), zrc, cfs, tenors)

# Key rate convexity matrix: ∂²V/∂rᵢ∂rⱼ / V
conv_matrix = convexity(KeyRates(), zrc, cfs, tenors)

For a complete set of key-rate results in a single AD pass, use sensitivities:

result = sensitivities(zrc, cfs, tenors)
# result.value       — present value
# result.durations   — key rate durations (modified) — vector
# result.convexities — cross-convexity matrix — matrix

# For DV01s instead of durations:
dv01_result = sensitivities(DV01(), zrc, cfs, tenors)
# dv01_result.value       — present value
# dv01_result.dv01s       — key rate DV01s — vector
# dv01_result.convexities — cross-convexity matrix — matrix

Scalar vs Key-Rate Decomposition

By default, duration and convexity with a ZeroRateCurve return scalars — the total modified duration, DV01, or convexity. This is consistent with the yield-based API (duration(0.03, cfs, times)).

To obtain the per-tenor decomposition, pass KeyRates() as the first argument:

# Scalar (default) — same as sum of key-rate decomposition
duration(zrc, cfs, tenors)                          # scalar
duration(DV01(), zrc, cfs, tenors)                   # scalar
convexity(zrc, cfs, tenors)                          # scalar

# Key-rate decomposition
duration(KeyRates(), zrc, cfs, tenors)               # vector
duration(DV01(), KeyRates(), zrc, cfs, tenors)       # vector
convexity(KeyRates(), zrc, cfs, tenors)              # matrix

The scalar value equals the sum of the key-rate decomposition:

duration(zrc, cfs, tenors) ≈ sum(duration(KeyRates(), zrc, cfs, tenors))

For a flat curve, the scalar modified duration matches the yield-based API:

using ActuaryUtilities

cfs = [5.0, 5.0, 5.0, 5.0, 105.0]
tenors = [1.0, 2.0, 3.0, 4.0, 5.0]
zrc = ZeroRateCurve(fill(0.03, 5), tenors)

duration(zrc, cfs, tenors)                            # ≈ 4.57
duration(0.03, cfs, tenors)                            # ≈ 4.57 (same)

For Macaulay duration, use the scalar yield API directly — there is no ZeroRateCurve dispatch:

duration(Macaulay(), 0.03, cfs, tenors)

Interest-Sensitive Instruments

For instruments whose cashflows depend on the rate environment (callable bonds, floaters, etc.), use the do-block syntax to pass a custom valuation function:

# Callable bond: key rate durations (vector)
callable_krds = duration(KeyRates(), zrc) do curve
    ncv = pv(curve, cfs, tenors)
    called_value = pv(curve, cfs[1:3], tenors[1:3]) + 102.0 * curve(3.0)
    min(ncv, called_value)
end

# Scalar duration (default)
callable_dur = duration(zrc) do curve
    ncv = pv(curve, cfs, tenors)
    called_value = pv(curve, cfs[1:3], tenors[1:3]) + 102.0 * curve(3.0)
    min(ncv, called_value)
end

The function receives a curve object and must return a scalar value. ForwardDiff differentiates through the entire valuation, capturing any rate-dependent optionality.

Two-Curve Decomposition

Decompose sensitivities into base (risk-free) and credit spread components using IR01 and CS01:

base = ZeroRateCurve([0.03, 0.03, 0.03, 0.03, 0.03], tenors)
credit = ZeroRateCurve([0.02, 0.02, 0.02, 0.02, 0.02], tenors)

# Scalar IR01 and CS01
ir01 = duration(IR01(), base, credit, cfs, tenors)
cs01 = duration(CS01(), base, credit, cfs, tenors)

# Key-rate decomposition (vectors)
ir01s = duration(IR01(), KeyRates(), base, credit, cfs, tenors)
cs01s = duration(CS01(), KeyRates(), base, credit, cfs, tenors)

# Two-curve convexity — scalars by default
conv = convexity(base, credit, cfs, tenors)
# conv.base, conv.credit, conv.cross (all scalars)

# Key-rate decomposition (matrices)
conv_kr = convexity(KeyRates(), base, credit, cfs, tenors)
# conv_kr.base, conv_kr.credit, conv_kr.cross (all matrices)

# Full two-curve sensitivities (always key-rate decomposition)
result = sensitivities(base, credit, cfs, tenors)

The default two-curve valuation uses multiplicative discount factors: V = Σ cf × base(t) × credit(t), which corresponds to additive rates.

Example: Credit-Risky Floating Rate Bond

For fixed cashflows, IR01 and CS01 are identical because base and credit rates enter additively. A credit-risky floating rate bond breaks this symmetry — its coupons reset to the risk-free forward rate plus a fixed credit spread, so bumping base rates changes both coupon amounts and discount factors (partially canceling), while bumping credit rates only affects discounting:

base = ZeroRateCurve([0.03, 0.03, 0.03, 0.03, 0.03], tenors)
credit = ZeroRateCurve([0.02, 0.02, 0.02, 0.02, 0.02], tenors)

# Floating rate bond: coupon = risk-free forward + 200bp credit spread
# Discounted at the combined base + credit rate
spread = 0.02
face = 100.0

result = sensitivities(base, credit) do base_curve, credit_curve
    total = 0.0
    for t in 1:5
        df_base = base_curve(Float64(t))
        df_credit = credit_curve(Float64(t))
        df_base_prev = t == 1 ? 1.0 : base_curve(Float64(t - 1))

        # Coupon resets to risk-free forward rate + fixed credit spread
        fwd = df_base_prev / df_base - 1.0
        total += face * (fwd + spread) * df_base * df_credit

        # Principal at maturity
        t == 5 && (total += face * df_base * df_credit)
    end
    total
end

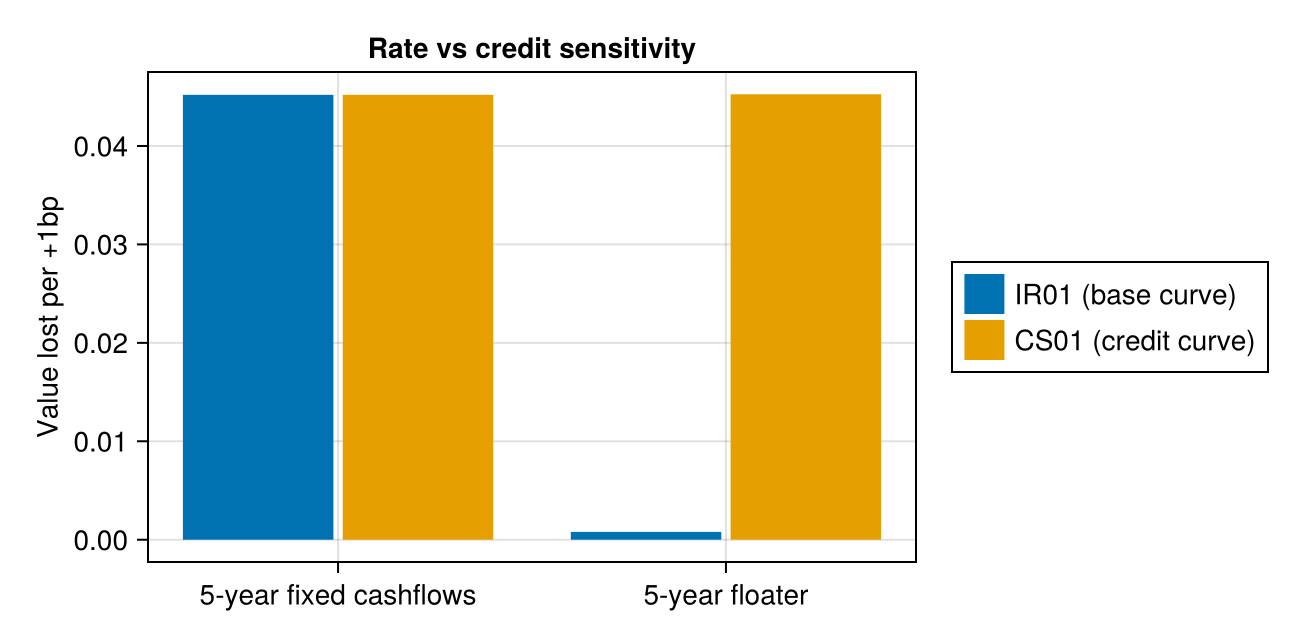

sum(result.base_durations)    # IR01 — small, coupon reset offsets base rate sensitivity
sum(result.credit_durations)  # CS01 — larger, credit spread only affects discounting

Bumping base rates changes both the floating coupon amounts and the discount factors (partially canceling), while bumping credit rates only affects discounting. This asymmetry is why the IR01/CS01 decomposition matters for instruments with rate-dependent cashflows.

Portfolio Sensitivity

DV01s are additive across positions, so a portfolio's DV01 vector equals the sum of individual DV01s:

zrc = ZeroRateCurve(rates, tenors)

# Compute portfolio DV01 vector in a single AD pass
# bond1_cfs, bond2_cfs are Vector{Cashflow} (from FinanceCore)
portfolio_dv01 = duration(DV01(), KeyRates(), zrc) do curve
    pv(curve, bond1_cfs) + pv(curve, bond2_cfs)
end

# Equivalently (but two AD passes):
dv01_1 = duration(DV01(), KeyRates(), zrc, bond1_cfs, bond1_times)
dv01_2 = duration(DV01(), KeyRates(), zrc, bond2_cfs, bond2_times)
portfolio_dv01 ≈ dv01_1 .+ dv01_2

Example: Portfolio of Floating Rate Bonds

Floating rate bonds have coupons that reset to the prevailing market rate, so their cashflows depend on the rate curve itself. The do-block captures this dependency through AD — differentiating through both the discount factors and the coupon amounts in a single pass:

using ActuaryUtilities, FinanceModels

rates = [0.02, 0.025, 0.03, 0.035, 0.04, 0.042, 0.044, 0.046, 0.048, 0.05]
tenors = collect(1.0:10.0)
zrc = ZeroRateCurve(rates, tenors)

# 10 floating rate bonds: maturities 1yr to 10yr, face 100 each,
# annual coupons = 1yr forward rate + 50bp credit spread
notionals = fill(100.0, 10)
maturities = 1:10
spread = 0.005

# The do-block receives the curve and returns the total present value
# of all cashflows across the portfolio.
# The curve is constructed once per AD evaluation — valuing all 10 bonds
# inside a single do-block avoids rebuilding the curve for each bond.
result = sensitivities(zrc) do curve
    total = 0.0
    for (notional, mat) in zip(notionals, maturities)
        # For each bond, loop over annual payment dates t = 1, 2, ..., maturity
        for t in 1:mat
            # Discount factors: df = P(0,t), df_prev = P(0,t-1)
            df = curve(Float64(t))
            df_prev = t == 1 ? 1.0 : curve(Float64(t - 1))

            # 1yr simple forward rate from t-1 to t: F = P(0,t-1)/P(0,t) - 1
            fwd = df_prev / df - 1.0

            # Floating coupon PV: notional × (forward rate + spread) × P(0,t)
            total += notional * (fwd + spread) * df

            # Return principal at maturity
            t == mat && (total += notional * df)
        end
    end
    total
end

result.value       # portfolio present value (≈ 10 × 100 + spread premium)
result.durations   # key rate durations — small, since floaters reset

Without the spread, a floater prices at par and has near-zero duration (coupons offset discount factor changes). The spread introduces duration because its fixed cashflows are rate-sensitive — similar to a portfolio of small fixed-rate annuities layered on top of the par-valued floaters.

Stochastic Model Sensitivities

ForwardDiff's dual numbers propagate through the full Monte Carlo simulation pipeline in FinanceModels.jl, including the Euler-Maruyama path generation. This means you can compute exact sensitivities of expected present values under stochastic short-rate models — differentiating through thousands of simulated rate paths in a single AD pass.

What is being differentiated?

The sensitivities function always differentiates with respect to the zero rates in the ZeroRateCurve — these are the market-observable inputs. When you wrap a stochastic model inside the do-block:

hw = ShortRate.HullWhite(0.1, 0.01, zrc)
sensitivities(hw, cfs, times; n_scenarios=500, rng=Xoshiro(42))

the chain of differentiation is:

1. ForwardDiff perturbs zero rate rᵢ
2. The perturbed curve changes the forward curve f(0, t)
3. Hull-White recalibrates θ(t) from the new forwards
4. All simulated paths shift (same random draws, different drift)
5. The expected PV changes → this change is the KRD at tenor i

The stochastic model parameters (a, σ) are not being differentiated — they are constants in this computation. The KRDs answer: "if the market yield curve shifts, how does my model-valued portfolio respond?" This is the relevant question for hedging with market instruments (bonds, swaps), which is the primary use case for key rate durations.

Model parameter sensitivities (vega, mean-reversion sensitivity)

A separate question is: "how does expected PV change if I change the model parameters a or σ?" These are model risk sensitivities, useful for understanding calibration sensitivity and model uncertainty. They are conceptually different from curve KRDs:

Model parameter sensitivities (∂V/∂a, ∂V/∂σ) are not currently supported by the AD pathway. The simulate function in FinanceModels.jl uses Float64 arrays internally for simulation paths, which prevents ForwardDiff dual numbers from propagating through the model parameters. Dual numbers flow through the curve rates (because build_model and θ(t) calibration handle generic numeric types), but a and σ must be plain Float64.

For model parameter sensitivities, use finite differences as a workaround:

using FinanceModels: ShortRate, simulate
using FinanceCore: discount
using Random: Xoshiro

rates = [0.03, 0.03, 0.03, 0.03, 0.03]
tenors = [1.0, 2.0, 3.0, 4.0, 5.0]
cfs = [5.0, 5.0, 5.0, 5.0, 105.0]

function mc_value(a, σ)
    curve = ZeroRateCurve(rates, tenors)
    hw = ShortRate.HullWhite(a, σ, curve)
    scenarios = simulate(hw; n_scenarios=1000, timestep=1/12, horizon=6.0, rng=Xoshiro(42))
    sum(pv(sc, cfs, tenors) for sc in scenarios) / 1000
end

# Finite-difference sensitivities
ε = 1e-5
dV_da = (mc_value(0.1 + ε, 0.01) - mc_value(0.1 - ε, 0.01)) / (2ε)   # mean reversion
dV_dσ = (mc_value(0.1, 0.01 + ε) - mc_value(0.1, 0.01 - ε)) / (2ε)   # volatility (vega)

Hull-White: sensitivities w.r.t. the initial term structure

A Hull-White model calibrates its drift θ(t) to match an initial yield curve. When that curve is a ZeroRateCurve, you can compute how the Monte Carlo expected value responds to movements in the initial zero rates:

using ActuaryUtilities, FinanceModels
using FinanceModels: ShortRate, simulate
using FinanceCore: discount
using Random

rates = [0.03, 0.03, 0.03, 0.03, 0.03]
tenors = [1.0, 2.0, 3.0, 4.0, 5.0]
zrc = ZeroRateCurve(rates, tenors)

cfs = [5.0, 5.0, 5.0, 5.0, 105.0]
times = [1.0, 2.0, 3.0, 4.0, 5.0]

# Key rate sensitivities of E[V] under Hull-White dynamics
hw = ShortRate.HullWhite(0.1, 0.01, zrc)
hw_result = sensitivities(hw, cfs, times; n_scenarios=500, timestep=1/12, horizon=6.0, rng=Xoshiro(42))

hw_result.durations   # key rate durations under stochastic dynamics
hw_result.convexities # cross-convexity matrix

This involves nested AD: the outer ForwardDiff differentiates w.r.t. zero rates, while Hull-White's θ(t) calibration internally uses ForwardDiff to compute instantaneous forward rates from the curve. ForwardDiff's tag system disambiguates the two differentiation passes automatically.

Comparison: deterministic vs model-based sensitivities

The deterministic ZeroRateCurve and Hull-White MC valuations produce the same total duration for fixed cashflows (a consequence of the risk-neutral pricing theorem), but decompose it across tenors differently:

# Deterministic: discount directly off the initial curve
det_result = sensitivities(zrc, cfs, tenors)

# Model-based: average across simulated rate paths
hw = ShortRate.HullWhite(0.1, 0.01, zrc)
hw_result = sensitivities(hw, cfs, times; n_scenarios=1000, timestep=1/12, horizon=6.0, rng=Xoshiro(42))

det_result.durations  # [0.04, 0.09, 0.13, 0.16, 4.15]  (localized at each tenor)
hw_result.durations   # [-1.01, 1.04, 1.70, 1.85, 0.99]  (redistributed across tenors)

sum(det_result.durations) # 4.57  — total modified duration (= duration(zrc, cfs, tenors))
sum(hw_result.durations)  # 4.57  — same total (risk-neutral guarantee)

Why the totals match: For fixed cashflows, E[V] = Σ cfi × P(0, ti) under any risk-neutral model (Glasserman, 2003, Ch. 7), so a parallel shift of all zero rates produces the same ΔV regardless of whether we compute it by direct discounting or via Monte Carlo. This implies Σ KRDdet = Σ KRDHW.

Why the decomposition differs: The two approaches construct discount factors through different mathematical pathways. ZeroRateCurve with linear interpolation gives df(t) = exp(-r_interp(t) × t), where bumping ratej only affects the interpolated rate near tenor j — producing localized KRDs. Hull-White constructs discount factors by integrating a calibrated short-rate ODE: bumping ratej changes the forward curve f(0,t), which changes θ(t) = ∂f/∂t + a·f + σ²(1−e^{−2at})/2a everywhere, altering the short-rate path at all times via the mean-reversion dynamics (Brigo & Mercurio, 2006, Ch. 3). This creates non-local sensitivity even in the σ→0 limit — it is the model's parametric structure, not stochastic volatility, that redistributes duration.

This phenomenon is well-established in derivatives pricing as "model-dependent Greeks": different models calibrated to the same curve produce identical prices but different sensitivities. The pathwise differentiation technique used here (Giles & Glasserman, 2006) computes exact derivatives of the Monte Carlo estimate in a single forward pass, capturing the full chain of dependencies from initial curve through θ(t) calibration through path simulation to valuation.

Choosing Interpolation

ZeroRateCurve accepts an optional third argument for the interpolation method:

zrc = ZeroRateCurve(rates, tenors)                              # default: MonotoneConvex
zrc_pchip = ZeroRateCurve(rates, tenors, Spline.PCHIP())        # PCHIP
zrc_lin = ZeroRateCurve(rates, tenors, Spline.Linear())          # linear
zrc_cub = ZeroRateCurve(rates, tenors, Spline.Cubic())           # cubic spline
zrc_aki = ZeroRateCurve(rates, tenors, Spline.Akima())           # Akima

MonotoneConvex (Spline.MonotoneConvex(), default): Finance-aware interpolation (Hagan & West, 2006). Guarantees positive continuous forward rates, best KRD locality among smooth methods, and fastest AD performance.

PCHIP (Spline.PCHIP()): Smooth forward curves (C1), local sensitivity, monotonicity-preserving. Good general-purpose alternative.

Linear (Spline.Linear()): Perfectly local KRDs (zero sensitivity outside adjacent intervals), but kinks in the forward curve at tenor points.

Akima (Spline.Akima()): Alternative to PCHIP with different behavior near inflection points. Slightly more non-local leakage than PCHIP.

Cubic spline (Spline.Cubic()): Smoothest (C2), but bumps have non-local effects. KRDs at distant tenors may be negative. Use when smoothness matters most.

See the FinanceModels interpolation guide for detailed benchmarks and tradeoff analysis. On a flat curve, all methods produce identical results.

Validating AD vs Bump-and-Reprice

AD sensitivities can be cross-validated against traditional finite-difference (bump-and-reprice) results. The AD approach gives exact derivatives in a single pass, while FD has O(ε²) truncation error:

using ActuaryUtilities, FinanceModels, Test

rates = [0.02, 0.03, 0.04, 0.05]
tenors = [1.0, 3.0, 5.0, 10.0]
zrc = ZeroRateCurve(rates, tenors)
cfs = [3.0, 3.0, 3.0, 103.0]

# AD (exact) — use KeyRates() for the per-tenor vector
ad_dv01 = duration(DV01(), KeyRates(), zrc, cfs, tenors)

# Finite difference (bump-and-reprice)
ε = 1e-5
for i in 1:4
    rates_up = copy(rates); rates_up[i] += ε
    rates_dn = copy(rates); rates_dn[i] -= ε
    v_up = pv(ZeroRateCurve(rates_up, tenors), cfs, tenors)
    v_dn = pv(ZeroRateCurve(rates_dn, tenors), cfs, tenors)
    fd_dv01 = -(v_up - v_dn) / (2ε) / 10_000
    @test ad_dv01[i] ≈ fd_dv01 atol = 1e-4
end
